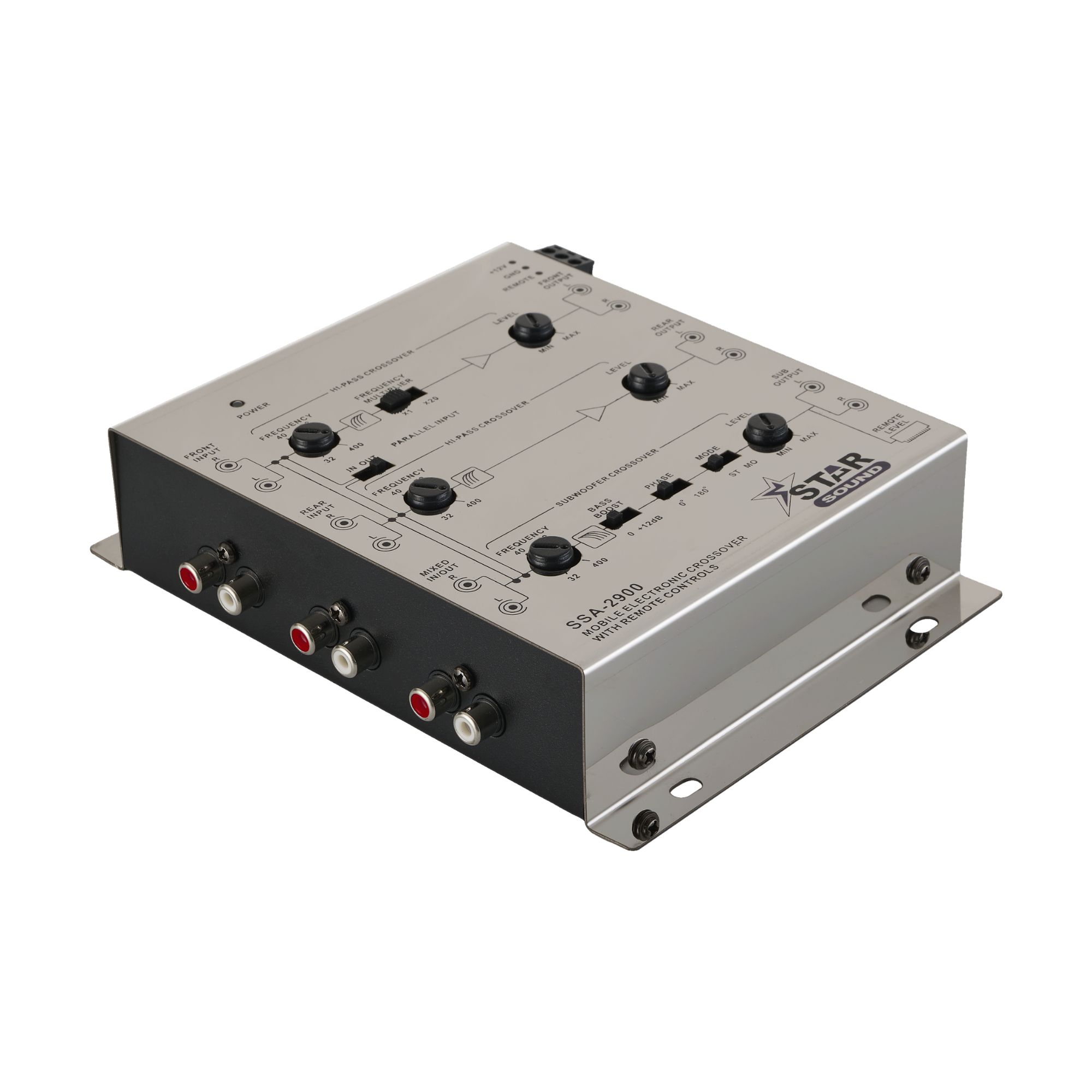

SSA-EQ-2900

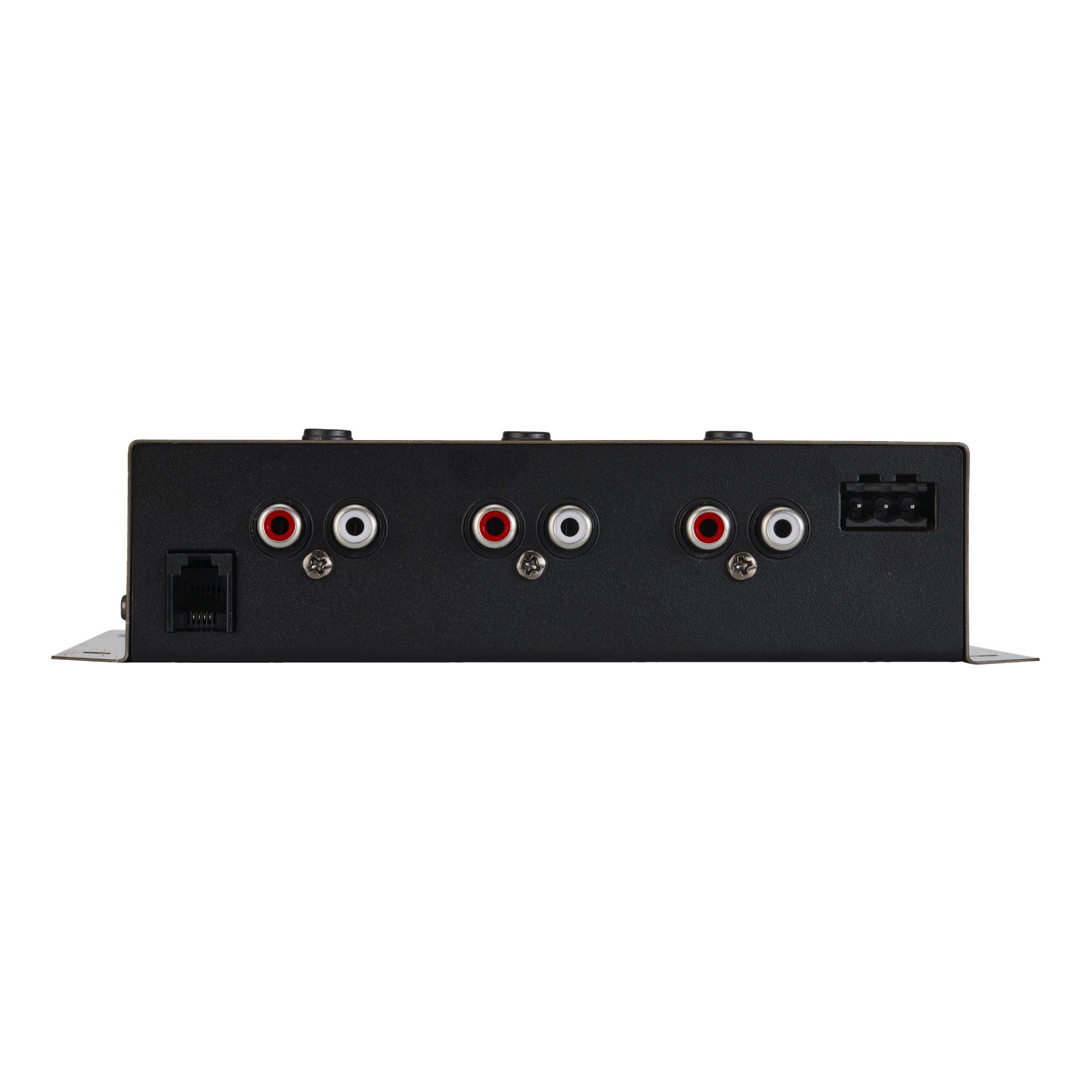

Power & Input:

Power Source: 14.4 Volts DC Negative Ground

Input Current: 0.5 Amp Max

Performance Metrics:

Distortion: 0.01% THD at 1V Output Level

Frequency Response: 10Hz – 30kHz (-3dB)

Signal to Noise Ratio (S/N): >95dB (A-weighted)

Channel Separation: 60dB

Crossover Settings:

Front Highpass (X1): 32-400Hz

Front Highpass (X20): 640-8kHz

Rear High-pass (3-way only): 32-400Hz

Subwoofer: 32-400Hz

Crossover Slope Rate:

Low Pass: 18dB per octave (3rd order Butterworth)

High-pass: 12dB per octave (3rd order Butterworth)

Subwoofer Boost:

Range: 0dB to 12dB (variable) at 45Hz

Input & Output Impedance:

Input Impedance: 20k Ohms

Output Impedance: 100 Ohms

Output Metrics:

Output Gain: 1:2 (+6Db)

Output Voltage Level: 5 Volts Max
