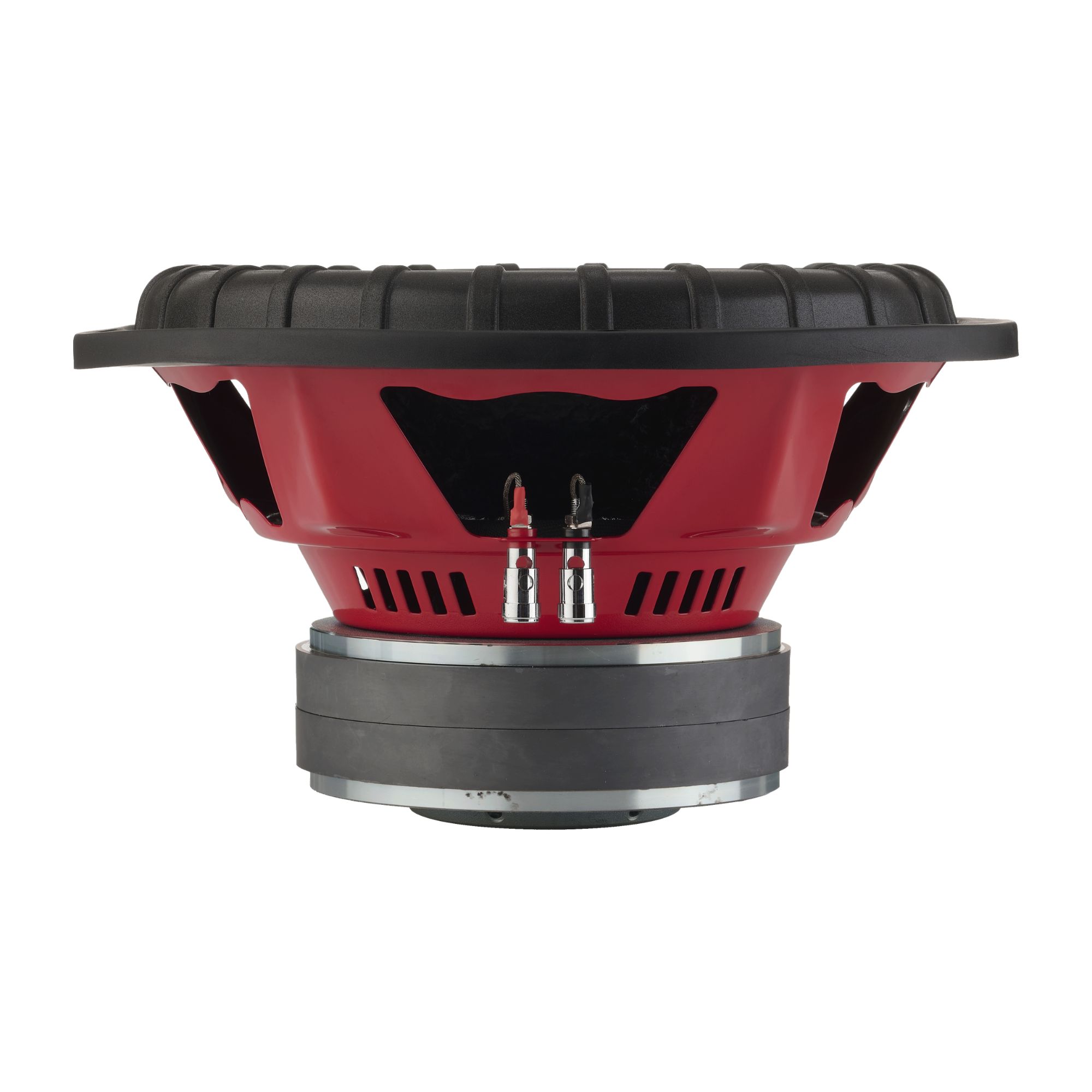

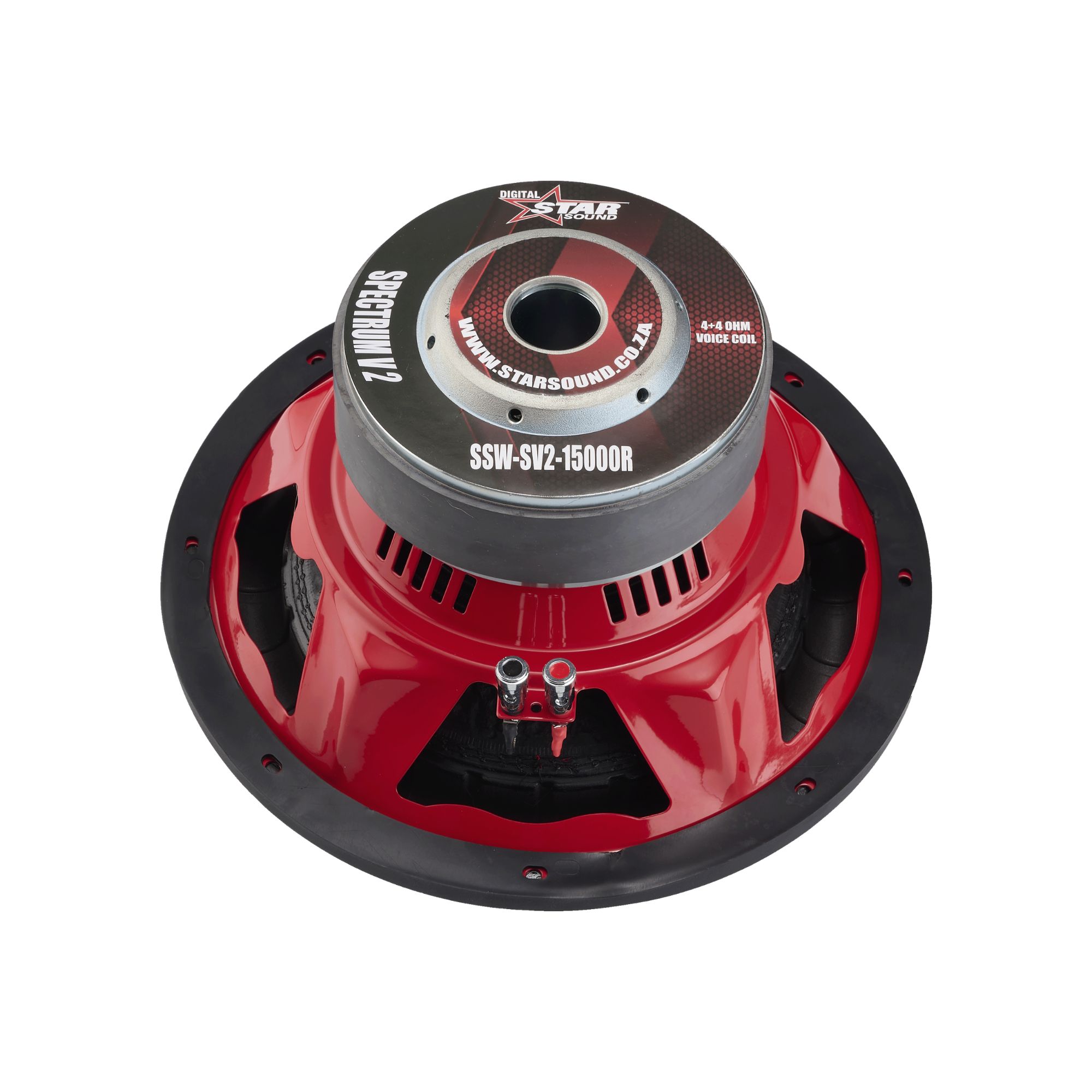

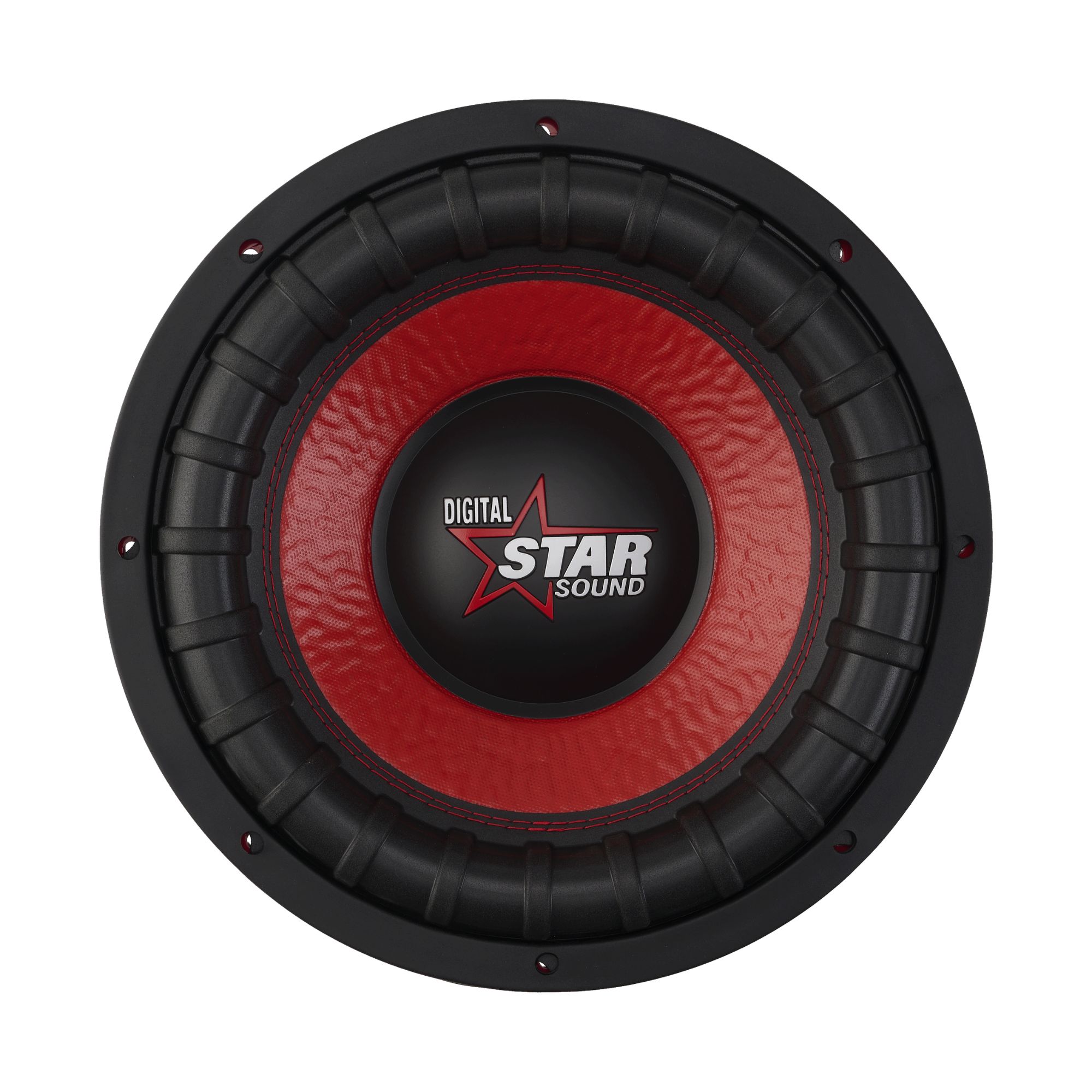

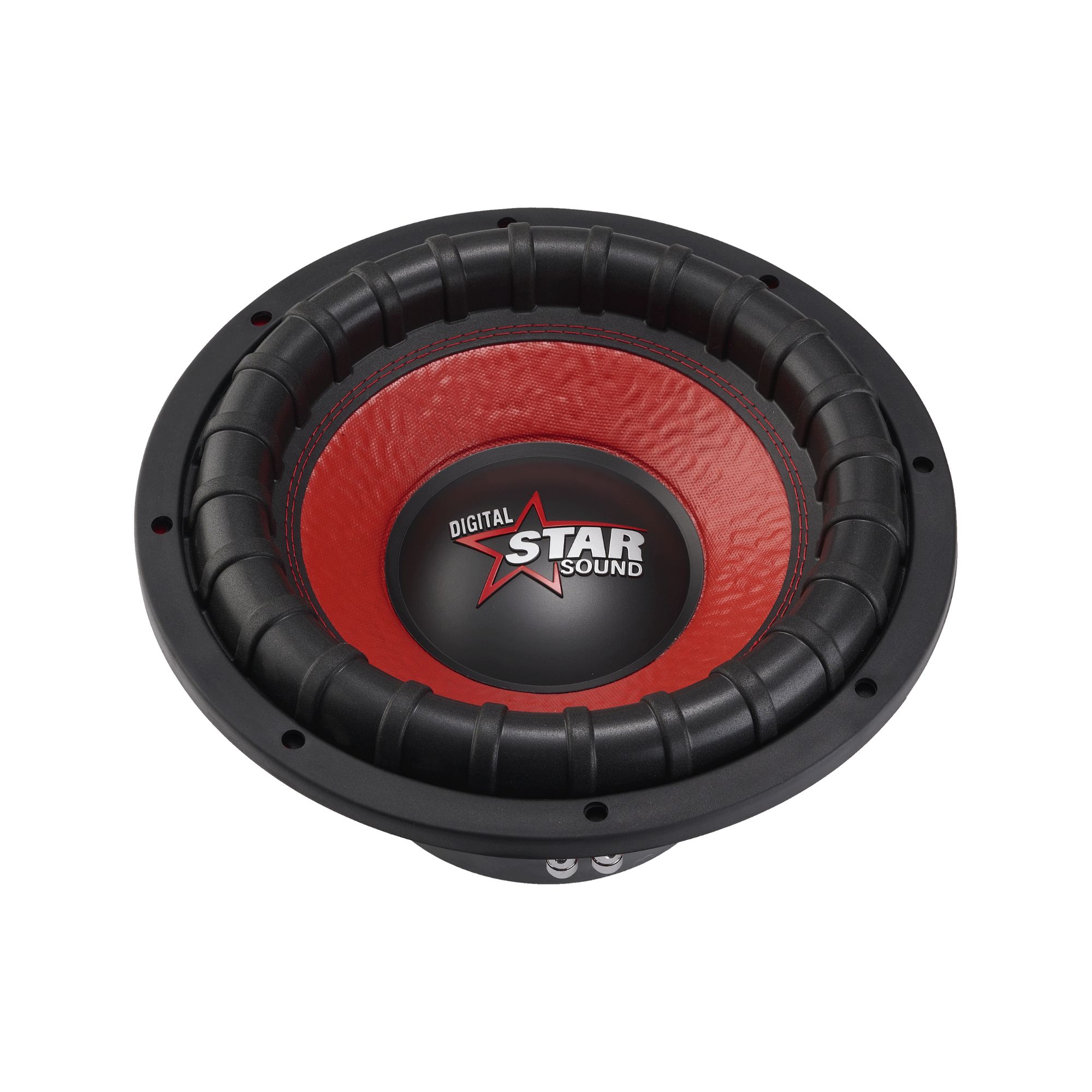

SSW-SV2-15000R
people are viewing this right now
Description
Available in Black, Blue And Red
Reinforced ribbed surround improving linear excursions
3″ High temp 4layer Cu voice coil, aluminium cooling bobbin
nickel plated high strength push terminals
Non pressed rugged paper cone design with stiching
Double magnet, deep T-yoke for longer Xmax stroke
Forsed air cooling integrated in magnet structure
Specifications
| Specification | Value |
| VC Impedance (ohms) | 4+4 |
| Test Impedance (ohms) | 2 |
| Fs (Hz) | 37 |
| SD | 51.071 |
| Vas | 33.372 |
| Cms | 90.105 |
| Mms | 206.636 |
| BL | 10.816 |
| Qms | 6.381 |
| Qes | 0.819 |
| Qts | 0.726 |
| No (%) | 0.198 |
| Spl (dB) | 85 |
| Xmax (mm) | 18 |
| Voice Coil Size (inches) | 3 |
| Frequency Response (Hz) | 37-500 |
| Magnet (Oz) | 113 |
| Mounting Depth (inches) | 6.34 |
| RMS Rating | 1500 |
